Effective Tooth Preparation for PFM Crowns: Procedure & Guideline

Introduction to Porcelain-Fused-to-Metal (PFM) Crowns

Porcelain-fused-to-metal (PFM) crowns have been a cornerstone in dental restorations for many years. These crowns combine the strength of metal with the aesthetic appeal of porcelain, making them a popular choice for both front and back teeth. Their durability and effectiveness have been validated through extensive clinical research, making them a trusted solution for full-coverage restorations worldwide.

Millions of PFM restorations have been placed globally, thanks to their strength and aesthetic versatility. Typically, PFM crowns can last 15 to 20 years with proper oral hygiene, offering a reliable and lasting solution for many patients.

Material Composition and Properties

High-Noble Alloys

PFM crowns can be made using high-noble alloys, which consist of at least 60% noble metals, including gold, platinum, and palladium. These metals offer superior strength and biocompatibility, especially for patients with metal allergies. High-noble alloys ensure a strong, durable foundation for the porcelain overlay while minimizing the risk of adverse reactions.

Semi-Precious Alloys

Semi-precious alloys contain at least 25% noble metals, combined with other elements. They provide a good balance between cost and performance, making them a practical choice for many patients. These alloys offer adequate strength and are less expensive than high-noble alloys.

Non-Precious Alloys

Non-precious alloys have less than 25% noble metal content and include metals like chromium, beryllium, nickel, and cobalt. These alloys are cost-effective but may pose a risk of allergic reactions for some patients. Despite their lower cost, non-precious alloys provide the necessary strength and support for the porcelain layer, ensuring a durable restoration.

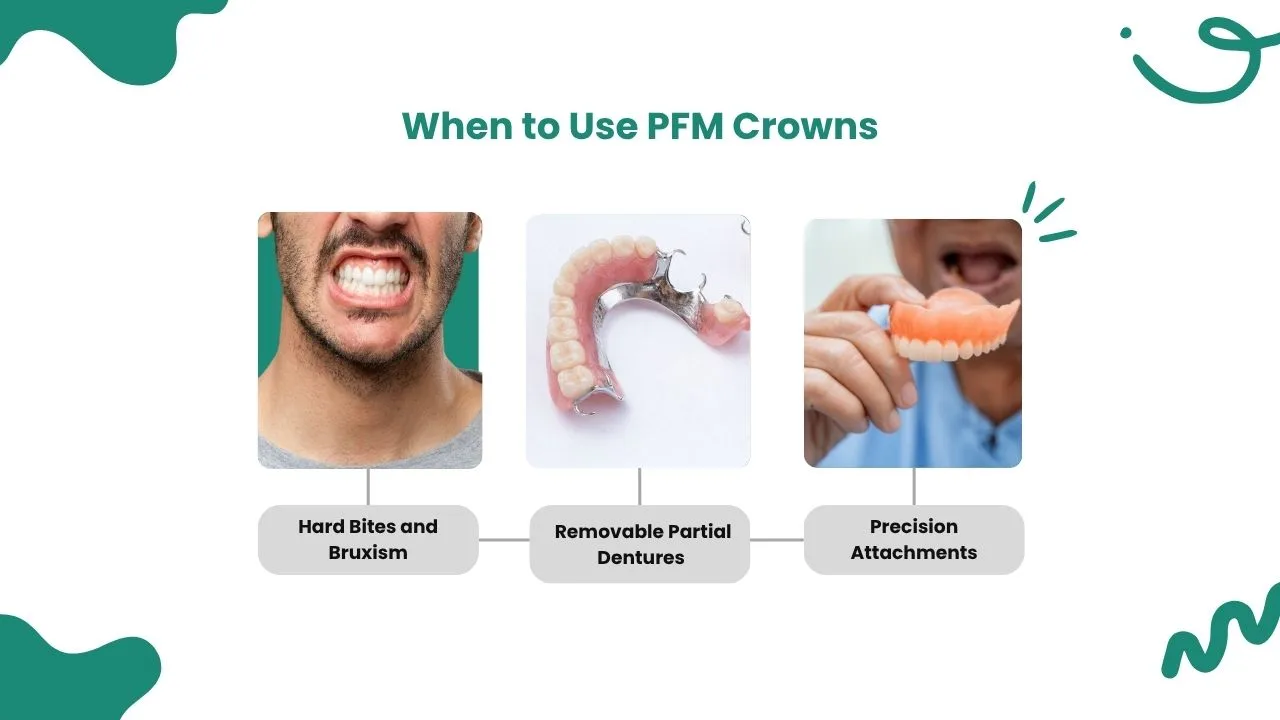

When to Use PFM Crowns

PFM crowns are particularly beneficial in several scenarios, offering unique advantages based on their material properties:

Hard Bites and Bruxism

1. The metal occlusal surface is highly durable.
2. Withstands strong chewing forces.
3. Prevents excessive wear on opposing teeth.

Compatibility with Removable Partial Dentures

1. Metal rests and lingual surfaces provide robust support.
2. Ideal for cast metal removable partial dentures.

Precision Attachments

1. Suitable for clasp-free removable partial dentures.
2. Ensures a secure and precise fit.

These specific use cases highlight the versatility and strength of PFM crowns, making them a preferred choice in certain dental situations.

Benefits of PFM Crowns

PFM crowns offer numerous advantages, combining the best of metal and porcelain properties:

Strength and Durability

1. The metal substructure provides a strong, reliable foundation.
2. Suitable for high-stress areas in the mouth.

Aesthetic Advantages

1. The porcelain overlay can be color-matched to natural teeth.
2. Offers a more natural look compared to all-metal crowns.

Long-Term Reliability

1. Proven track record of lasting 15 to 20 years with proper care.
2. Extensive clinical research supports their use and effectiveness.

Versatility

1. Can be used for full-coverage crowns, bridges, and long-span bridges.
2. Adaptable for crowns with metal occlusal surfaces and ¾ crowns.

Drawbacks of PFM Crowns

Despite their many advantages, PFM crowns do have some drawbacks:

Aesthetic Challenges

1. Achieving a lifelike appearance can be difficult.
2. The metal substructure can show through the porcelain, requiring an opaque layer to mask it.
3. This opaque layer can prevent light from passing through, making the tooth look less natural compared to surrounding teeth.

Gum Tissue Recession

1. Over time, gum recession can expose the metal margin, creating an unattractive gray line, especially in the front teeth.
2. Metal contact with the gum tissue may cause sensitivity and irritation, particularly when base metal alloys are used.
3. These challenges highlight the need for careful consideration and skilled application when choosing and placing PFM crowns.

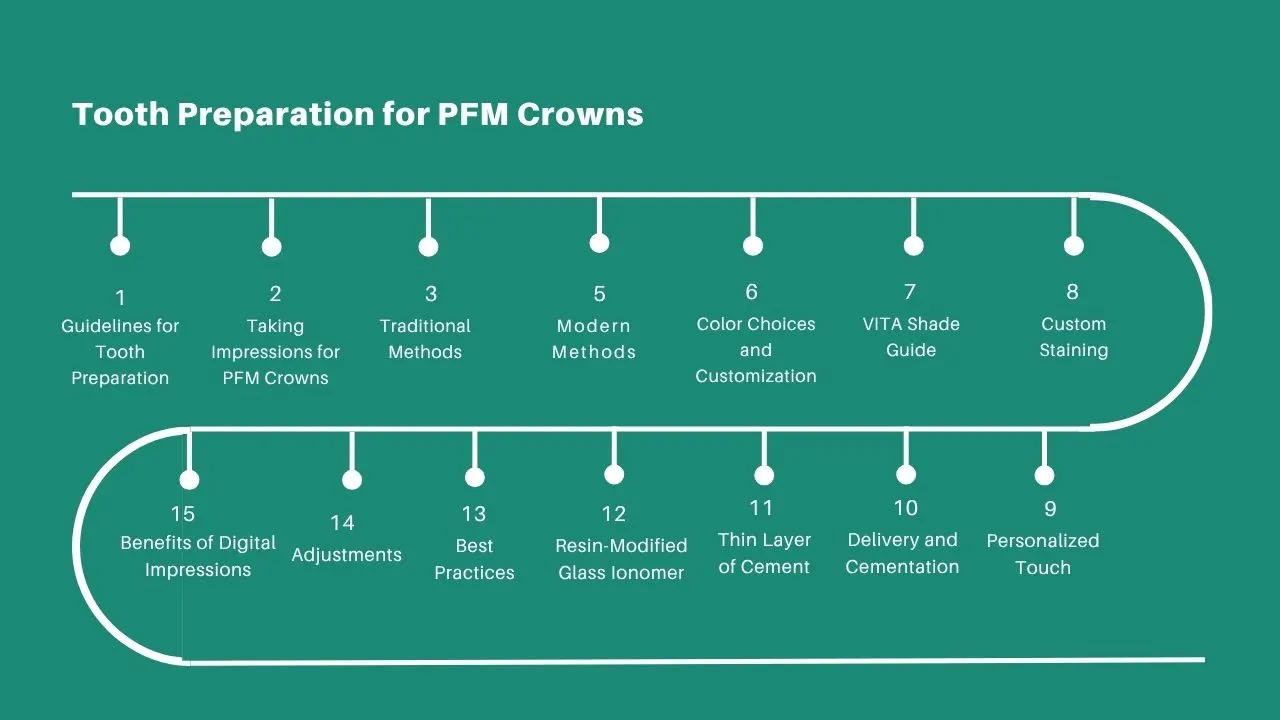

Tooth Preparation for PFM Crowns

Proper tooth preparation is crucial for the success of PFM crowns. The preparation must account for the thickness of both the metal substructure and the porcelain layers to avoid a bulky appearance and ensure good translucency and refractive properties.

Guidelines for Tooth Preparation:

• Facial Reduction for Anterior Teeth: 1.5 mm minimum
• Lingual Reduction for Anterior Teeth: 1.0 mm minimum
• Buccal and Lingual Surfaces of Posterior Teeth: 1.5 mm minimum
• Incisal or Occlusal Reduction: 2.0 mm
• Interproximal Reduction: 1.5 to 2.0 mm
• Smooth Shoulder Margins: Especially necessary for porcelain margins

Taking Impressions for PFM Crowns

Accurate impressions are vital for creating well-fitting PFM crowns. Traditional methods have been reliable, but modern technology offers enhanced precision.

Traditional Methods:

1. Polyvinyl Siloxane Impressions
2. Time-tested and widely used.
3. Effective for capturing detailed impressions.

Modern Methods:

1. 3D Scanning Technology
2. Provides precise digital impressions.
3. Improves patient comfort by eliminating messy materials.
4. Enhances accuracy, reducing the margin for error.
5. Facilitates a seamless digital workflow for dental labs.
6. Results in fewer adjustments at delivery, saving time and reducing costs.

These advanced methods ensure better fit and patient satisfaction, making the process smoother for both dentists and patients.

Color Choices and Customization

PFM crowns offer a range of color customization options to match the natural teeth. If you are using zirconia, here is the best shade guide for zirconia crowns:

VITA Shade Guide:

• Standard reference for porcelain colors.
• Helps achieve a consistent match with the patient's existing teeth.

Custom Staining:

1. Skilled ceramists can blend multiple colors on the same restoration.
2. Custom staining can mimic natural tooth characteristics.

Personalized Touch:

• Allows for adjustments post-fabrication to enhance the final look.
• Ensures the crown blends seamlessly with neighboring teeth.

Delivery and Cementation

The proper delivery and cementation of PFM crowns are essential for their longevity and effectiveness. Following best practices ensures a secure fit and optimal performance.

Thin Layer of Cement:

1. Properly reduced PFM crown preps allow for partial mechanical retention.
2. This permits a thin layer of cement, which is more secure and durable.

Resin-Modified Glass Ionomer:

1. Commonly used for PFM crown cementation.
2. Provides strong adhesion and ease of use.

Best Practices:

1. Ensure the crown fits well before applying cement.
2. Avoid using excessive amounts of cement, which can compromise the fit and durability.

Adjustments:

Proper adjustments ensure the crown fits perfectly and functions well.

Benefits of Digital Impressions:

• Fewer Adjustments Needed: Digital impressions capture more accurate details, reducing the need for extensive adjustments.

• Time-Saving: Minimal adjustments mean less chair time for both the dentist and the patient.

• Cost-Effective: Reduces overall costs by minimizing the need for follow-up visits and additional adjustments.

Final Touches:

• Check for Occlusion: Ensure the crown does not interfere with the patient’s bite.

• Polishing: Smooth out any rough edges to prevent irritation and improve comfort.

Conclusion: Why Choose PFM Crowns?

Porcelain-fused-to-metal crowns offer a reliable and aesthetic solution for dental restorations, balancing strength and appearance. Despite the rise of all-ceramic crowns, PFM crowns remain a valuable option for many patients, especially those needing durable restorations in high-stress areas.

Their long-standing track record, backed by extensive clinical research, ensures their continued relevance in modern dentistry. Each type of restorative material has its advantages and disadvantages, and PFM crowns are no exception. However, their ability to combine metal strength with porcelain aesthetics, and long pfm crown lifespan makes them a preferred choice for specific dental needs.

Consulting with knowledgeable dental lab technicians can help determine the most appropriate restoration for each clinical situation. Advance Dental Laboratory offers a range of fixed restorative solutions to meet diverse needs and aesthetic concerns, ensuring patients receive the best possible care.
